Variable Frequency Constant Pressure 250VAC Water Supply Controller Control Cabinet Accessories

Brand Name : JHL

Model Number : One control six variable frequency constant pressure water supply controller

Certification : CCC

Place of Origin : Chengdu, China

MOQ : 1

Payment Terms : L/C, T/T

Supply Ability : 1000PCS/YEAR

Delivery Time : 30work days

Color : Custom

Size : Custom

Feature : High Precision

Advantage : High Safety

Features : Long Service Life

Product name : Control Cabinet Accessories

Contact Now

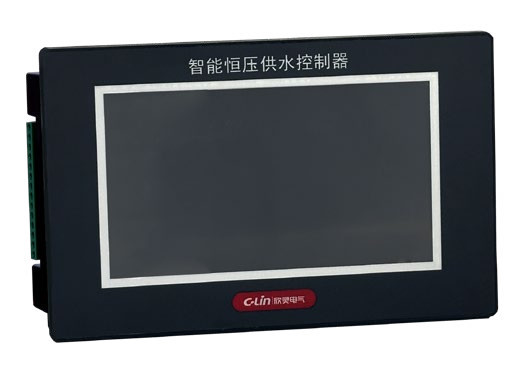

One control six variable frequency constant pressure water supply controller

Power supply: AC220V 50/60Hz

Display mode: Chinese touch color screen

Working mode: Control 5+1 constant pressure water supply; No negative pressure water supply

Protection function: pressure upper limit overpressure protection, water shortage/shutdown protection, pressure transmitter off-line protection Fault indication: fault alarm output

Load type: water pump

Contact capacity: 250VAC 5A(resistive)

Dimensions: 214×136×50mm

Hole size: 205×127mm

Installation mode: panel type

Operating temperature: -10℃ ~ 70℃

Ambient humidity: 10 ~ 90%RH (non-condensing)

product feature

◇The pump group can be set in a variety of ways, supporting a maximum of 5 main pumps +1 small pumps to meet a variety of combination conditions

◇ Support single frequency conversion, multi-frequency conversion wiring

◇ High-precision clock multi-period start and stop function, support up to 6 periods

◇ With sleep function, the main pump and small pump sleep parameters can be set independently

◇ Pressure upper limit protection function, over pressure automatic stop pump

◇ Pressure transmitter off-line detection

◇ Stable 24V DC output, can directly drive the pressure transmitter

◇ Perfect PID and acceleration and deceleration time control, simplify the field debugging time ◇ fault records can be queried

◇ Support RS485 communication

Variable Frequency Constant Pressure 250VAC Water Supply Controller Control Cabinet Accessories
